Industrial Laboratory Fume Hood
Chemical Fume Hood Manufacturer and Supplier in India
RJ LAB CRAFT INDIA PVT. LTD. is a trusted manufacturer and supplier of high-performance Chemical Fume Hoods designed to provide a safe and controlled working environment for laboratories handling hazardous chemicals, toxic fumes, vapors, and airborne contaminants. Our Chemical Fume Hoods are engineered for effective containment, operator protection, and reliable airflow performance, making them suitable for modern laboratory applications.
Designed with a focus on safety, durability, and functional efficiency, our fume hoods help laboratories maintain controlled ventilation while supporting critical chemical processes and research activities.
What is a Chemical Fume Hood?

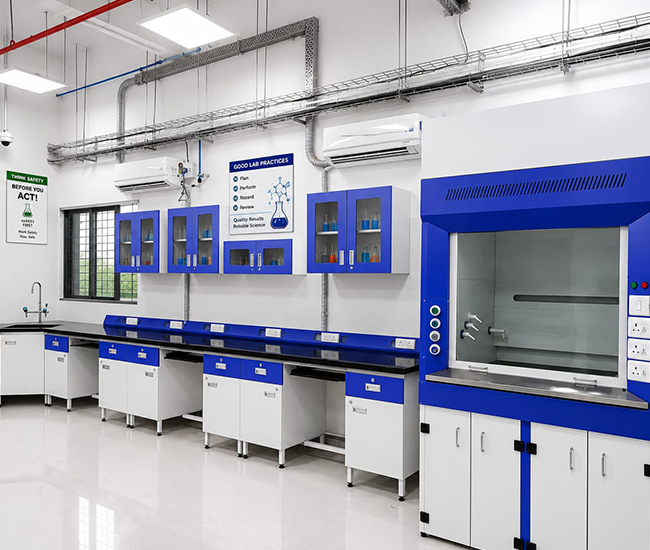

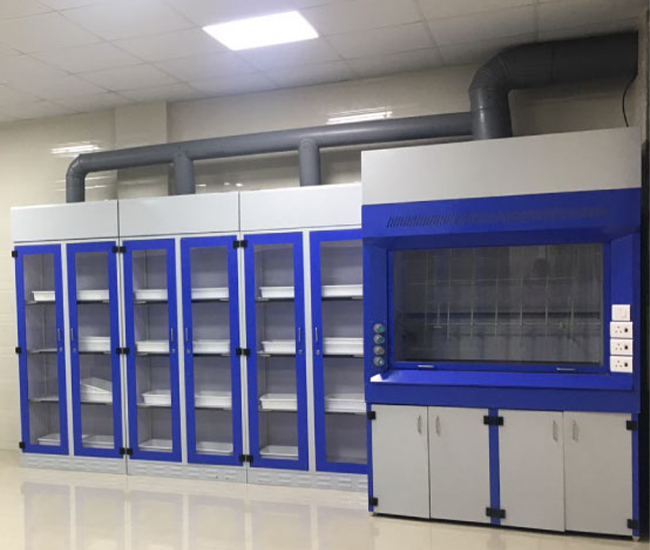

A Chemical Fume Hoods is a ventilated enclosure designed to capture, contain, and exhaust hazardous fumes released during chemical handling, mixing, reactions, testing, and sample preparation. It acts as a protective barrier between the operator and potentially harmful airborne substances while helping maintain a safer laboratory environment.
Chemical Fume Hoods are widely used where exposure to corrosive vapors, solvents, acids, or chemical reactions needs to be controlled.
Features of Our Chemical Fume Hoods :
At RJ LAB CRAFT INDIA PVT. LTD., our Chemical Fume Hoods are manufactured using premium materials and precision engineering to deliver dependable performance.
Key Features :
-
Efficient fume containment and exhaust performance
-
Controlled airflow design for operator safety
-
Chemical-resistant internal surfaces
-
Acid and alkali-resistant worktops
-
Durable sash mechanism with clear viewing panel
-
Corrosion-resistant construction
-
Utility provisions for gas, water, and electrical points
-
Low-maintenance and robust design
-
Custom-built sizes and configurations available
-
Long service life with reliable performance
Construction Material Options :
We offer Chemical Fume Hoods in different material constructions based on application requirements :
-
CRCA Powder Coated Construction
-
GI Construction
-
Stainless Steel (SS 304 / SS 316)
-
Polypropylene (PP) for corrosive chemical applications
-
Phenolic Resin Work Surfaces
-
Chemical-Resistant Liners and Internal Baffles
Applications of Chemical Fume Hoods :
Our Chemical Fume Hoods are suitable for a wide range of applications, including :
-
Pharmaceutical Laboratories
-
Chemical Testing Laboratories
-
Research and Development Facilities
-
Academic and Educational Laboratories
-
Petrochemical Laboratories
-
Hospitals and Diagnostic Laboratories
-
Food and Dairy Laboratories
-
Environmental Testing Laboratories
-
Government Research Institutions
-
Industrial Process Laboratories
Designed for Safety and Laboratory Efficiency :
Our Chemical Fume Hoods are engineered to support :
-
Safe handling of hazardous chemicals
-
Safe handling of hazardous chemicals
-
Reduced exposure risks for operators
-
Controlled laboratory airflow management
-
Improved process safety
-
Enhanced laboratory efficiency
-
Reliable day-to-day performance
Every unit is manufactured with attention to performance consistency, operational safety, and durability.
Custom Chemical Fume Hood Solutions :
Different laboratories have unique operational requirements. We provide customized Chemical Fume Hood solutions based on :
-
Laboratory layout and available space
-
Chemical compatibility needs
-
Airflow and exhaust requirements
-
Ducted system configurations
-
Utility integration requirements
-
Process-specific design needs
Our team works closely with customers to deliver practical and efficient solutions tailored to their applications.
Technical Specifications : Chemical Fume Hood
| Parameter | Specification |
|---|---|
| Product Type | Chemical Fume Hood |
| Application | Chemical handling, research, testing, analysis and laboratory processes involving hazardous fumes, vapours and chemicals |
| Construction | Heavy-duty modular construction suitable for chemical laboratory applications |
| External Body | CRCA / GI powder-coated steel or Stainless Steel SS 304 / SS 316, as required |
| Internal Lining | Chemical-resistant PP / FRP / Phenolic Resin / Epoxy-coated sheet / SS, depending on chemical application |
| Standard Widths | 1200 mm, 1500 mm, 1800 mm and 2400 mm; customized sizes available |
| Overall Dimensions | Customized according to laboratory layout and application requirements |
| Worktop Height | Typically, 750–900 mm, depending on configuration |
| Sash Type | Vertical rising / horizontal sliding / combination sash |
| Sash Material | Toughened safety glass / laminated safety glass |
| Sash Mechanism | Counter balanced mechanism for smooth and controlled movement |
| Work Surface | Epoxy Resin / Ceramic / Granite / Stainless Steel / PP |
| Baffle System | Rear baffle system designed for controlled and uniform airflow distribution |
| Airfoil | Aerodynamic front air foil to improve airflow entry and reduce turbulence |
| Exhaust System | Ducted exhaust system with suitably selected centrifugal exhaust blower |
| Airflow Configuration | Constant Air Volume (CAV) / Variable Air Volume (VAV), as required |
| Face Velocity | Application-specific; typically designed according to the required laboratory standard and verified during commissioning |
| Airflow Monitoring | Digital / electronic airflow monitor with visual and audible low-airflow alarm, optional |
| Lighting | LED lighting / Flame proof LED Lighting |
| Electrical Supply | 230 V, 1 Phase, 50 Hz or as per project requirement |
| Utility Services | Water, Nitrogen (N2), Compressed Air, Electrical Sockets and Other Services As Required |
| Sink | PP sink with suitable waste connection, optional |
| Service Fixtures | Laboratory-grade taps, valves and service outlets |
| Exhaust Duct Material | PP / FRP, selected according to chemical compatibility |
| Base Cabinet | Optional chemical-resistant storage cabinet / pedestal |
| Control Panel | Blower, lighting, airflow monitoring and alarm controls as required |
| Safety Features | Airflow monitoring, low-airflow alarm, sash positioning/stopping provision and suitable electrical safety features |
| Finish | Epoxy powder-coated / chemical-resistant finish |
| Chemical Resistance | Internal materials selected according to the type, concentration and temperature of chemicals used |
| Customization | Size, lining, worktop, sash, utilities, exhaust arrangement and accessories can be customized |
| Testing | Airflow, face velocity and containment performance can be tested according to project requirements |
| Design Standards | Designed with reference to applicable laboratory fume hood standards and project-specific requirements |
Why Choose RJ LAB CRAFT INDIA PVT. LTD.?
-
Experienced Chemical Fume Hood manufacturer
-
High-quality raw materials
-
Precision engineering and durable construction
-
Custom solutions for varied laboratory applications
-
Quality-tested products
-
Competitive pricing
-
Timely delivery support
-
Technical guidance and after-sales assistance
Chemical Fume Hood Manufacturer in India
As a reliable Chemical Fume Hood Manufacturer and Supplier in India, RJ LAB CRAFT INDIA PVT. LTD. offers solutions designed for safety, performance, and long-term durability. Our Chemical Fume Hoods are built to support laboratories handling critical chemical processes while maintaining operator protection and efficient containment.
Whether you require a standard Chemical Fume Hood or a customized solution designed for specific laboratory processes, we provide dependable systems built to meet your requirements.
Contact RJ LAB CRAFT INDIA PVT. LTD. for tailored Chemical Fume Hood solutions for your laboratory.
